PP-RCT PIPE WITH GLASS FIBER LAYER (SDR 7.4 , SDR 11 - PN25)
Material : Polypropylene Random-Copolymer Tempreature Resistant (PP-RCT)
Standard : EN ISO 15874 / DIN 8077 / DIN 8078
Application : Suitable for hot and cold water distribution.
Compound : TYPE - 4
Operating Pressure : 20°C/20 bar, 70°C/10 bar.
Pipe Lenght : 4 meter

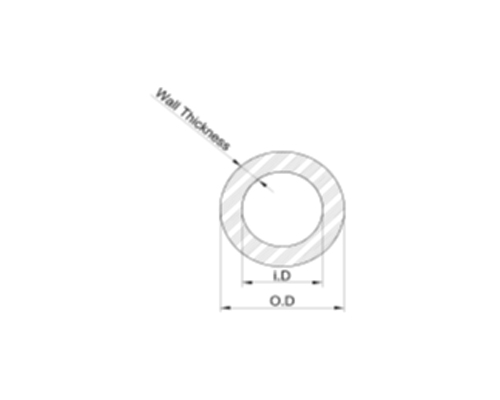

| Item Code | Description | Size | Thickness | Meters/Packet |
|---|---|---|---|---|
| VPPRCT20FG | VIALLI PPRCT PIPE W/ FIBER G. 20 X 2.8MM SDR7.4 - PN25 | 20 mm | 2.8 mm | 100 |
| VPPRCT25FG | VIALLI PPRCT PIPE W/ FIBER G. 25 X 3.5MM SDR7.4 - PN25 | 25 mm | 3.5 mm | 100 |
| VPPRCT32FG | VIALLI PPRCT PIPE W/ FIBER G. 32 X 4.4MM SDR7.4 - PN25 | 32 mm | 4.4 mm | 60 |
| VPPRCT40FG | VIALLI PPRCT PIPE W/ FIBER G. 40 X 5.4MM SDR7.4 - PN25 | 40 mm | 5.5 mm | 40 |
| VPPRCT50FG | VIALLI PPRCT PIPE W/ FIBER G. 50 X 6.9MM SDR7.4 - PN25 | 50 mm | 6.9mm | 20 |
| VPPRCT63FG | VIALLI PPRCT PIPE W/ FIBER G. 63 X 8.6MM SDR7.4 - PN25 | 63 mm | 8.6 mm | 16 |
| VPPRCT75FG | VIALLI PPRCT PIPE W/ FIBER G. 75 X 10.3MM SDR7.4 - PN25 | 75 mm | 10.3 mm | 12 |
| VPPRCT90FG | VIALLI PPRCT PIPE W/ FIBER G. 90 X 12.3MM SDR7.4 - PN25 | 90 mm | 12.3 mm | 8 |
| VPPRCT110FG | VIALLI PPRCT PIPE W/ FIBER G. 110 X 15.1MM SDR7.4 - PN25 | 110 mm | 15.1 mm | 4 |
| VPPRCT125FG | VIALLI PPRCT PIPE W/ FIBER G. 125 X 11.4MM SDR11 - PN25 | 125 mm | 11.4 mm | 3 |
| VPPRCT160FG | VIALLI PPRCT PIPE W/ FIBER G. 160 X 14.6MM SDR11 - PN25 | 160 mm | 14.6 mm | 1 |
| VPPRCT200FG | VIALLI PPRCT PIPE W/ FIBER G. 200 X 18.2MM SDR11 - PN25 | 200 mm | 18.2 mm | 1 |
| VPPRCT250FG | VIALLI PPRCT PIPE W/ FIBER G. 250 X 22.7MM SDR11 - PN25 | 250 mm | 22.7 mm | 1 |
