Product Details

PP-RCT PIPE WITH GLASS FIBER LAYER (SDR 7.4 , SDR 11 - PN25)

Material : Polypropylene Random-Copolymer Tempreature Resistant (PP-RCT)
Standard : EN ISO 15874 / DIN 8077 / DIN 8078
Application : Suitable for hot and cold water distribution.
Compound : TYPE - 4
Operating Pressure : 20°C/20 bar, 70°C/10 bar.

Pipe Lenght : 4 meter

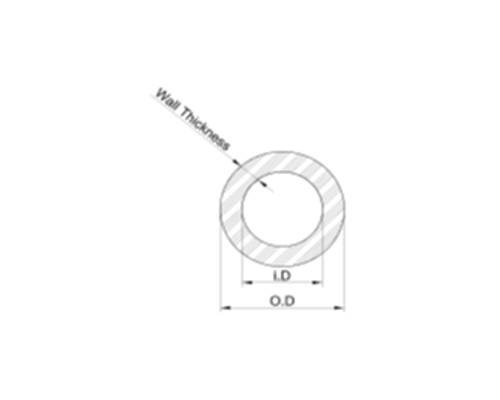

Item Code Description Size Thickness Meters/Packet
VPPRCT20FG    VIALLI PPRCT PIPE W/ FIBER G. 20 X 2.8MM SDR7.4 - PN25        20 mm 2.8 mm 100
VPPRCT25FG VIALLI PPRCT PIPE W/ FIBER G. 25 X 3.5MM SDR7.4 - PN25  25 mm 3.5 mm 100
VPPRCT32FG VIALLI PPRCT PIPE W/ FIBER G. 32 X 4.4MM SDR7.4 - PN25  32 mm 4.4 mm 60
VPPRCT40FG VIALLI PPRCT PIPE W/ FIBER G. 40 X 5.4MM SDR7.4 - PN25  40 mm 5.5 mm 40
VPPRCT50FG VIALLI PPRCT PIPE W/ FIBER G. 50 X 6.9MM SDR7.4 - PN25  50 mm 6.9mm 20
VPPRCT63FG VIALLI PPRCT PIPE W/ FIBER G. 63 X 8.6MM SDR7.4 - PN25  63 mm 8.6 mm 16
VPPRCT75FG VIALLI PPRCT PIPE W/ FIBER G. 75 X 10.3MM SDR7.4 - PN25  75 mm 10.3 mm 12
VPPRCT90FG VIALLI PPRCT PIPE W/ FIBER G. 90 X 12.3MM SDR7.4 - PN25  90 mm 12.3 mm 8
VPPRCT110FG VIALLI PPRCT PIPE W/ FIBER G. 110 X 15.1MM SDR7.4 - PN25  110 mm 15.1 mm 4
VPPRCT125FG VIALLI PPRCT PIPE W/ FIBER G. 125 X 11.4MM SDR11 - PN25  125 mm 11.4 mm 3
VPPRCT160FG VIALLI PPRCT PIPE W/ FIBER G. 160 X 14.6MM SDR11 - PN25 160 mm 14.6 mm 1
VPPRCT200FG VIALLI PPRCT PIPE W/ FIBER G. 200 X 18.2MM SDR11 - PN25 200 mm 18.2 mm 1
VPPRCT250FG VIALLI PPRCT PIPE W/ FIBER G. 250 X 22.7MM SDR11 - PN25  250 mm 22.7 mm 1
