PP-R with Fiberglass - PN 20
Material : Polypropylene Random Copolymer (PPR)
Standard : EN ISO 15874 / DIN 8077 / DIN 8078
Application : Suitable for hot and cold water distribution.
Compound : TYPE - 3
Operating Pressure : 25°C/20 bar, 70°C/8 bar.
Pipe Lenght : 4 meter

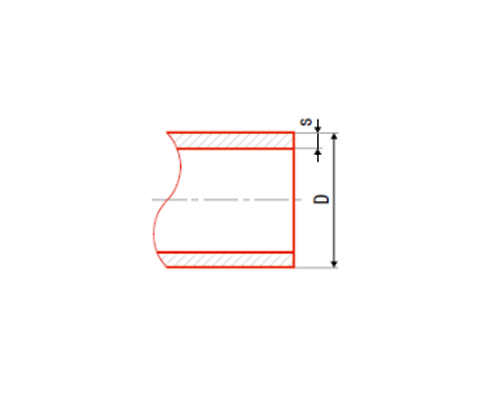

| Code | Description | Ø | SDR | PN | Thickness | MTR/PKT |
| VPPR20FG20 | VIALLI PP-R / FG / PP-R pipe Ø 20 x 2.8 mm | 20 | 7.4 | 20 | 2.8 | 100 |
| VPPR25FG20 | VIALLI PP-R / FG / PP-R pipe Ø 25 x 3.5 mm | 25 | 7.4 | 20 | 3.5 | 100 |
| VPPR32FG20 | VIALLI PP-R / FG / PP-R pipe Ø 32 x 4.4 mm | 32 | 7.4 | 20 | 4.4 | 60 |
| VPPR40FG20 | VIALLI PP-R / FG / PP-R pipe Ø 40 x 5.5 mm | 40 | 7.4 | 20 | 5.5 | 40 |
| VPPR50FG20 | VIALLI PP-R / FG / PP-R pipe Ø 50 x 6.9 mm | 50 | 7.4 | 20 | 6.9 | 20 |
| VPPR63FG20 | VIALLI PP-R / FG / PP-R pipe Ø 63 x 8.6 mm | 63 | 7.4 | 20 | 8.6 | 16 |
| VPPR75FG20 | VIALLI PP-R / FG / PP-R pipe Ø 75 x 10.3 mm | 75 | 7.4 | 20 | 10.3 | 12 |
| VPPR90FG20 | VIALLI PP-R / FG / PP-R pipe Ø 90 x 12.3 mm | 90 | 7.4 | 20 | 12.3 | 8 |
| VPPR110FG20 | VIALLI PP-R / FG / PP-R pipe Ø 110 x 15.1 mm | 110 | 7.4 | 20 | 15.1 | 4 |
| VPPR160FG20 | VIALLI PP-R / FG / PP-R pipe Ø 160 x 21.9 mm | 160 | 7.4 | 20 | 21.9 | 4 |
| VPPR200FG20 | VIALLI PP-R / FG / PP-R pipe Ø 200 x 23.2 mm | 200 | 9 | 20 | 23.2 | 4 |
| VPPR250FG20 | VIALLI PP-R / FG / PP-R pipe Ø 250 x 27.3 mm | 250 | 9 | 20 | 27.3 | 4 |
