PP-RC FIBER GLASS FIBER PIPE (SDR 7.4 - PN 20)
Material : Polypropylene Random Copolymer (PPR)
Standard : EN ISO 15874 / DIN 8077 / DIN 8078
Application : Suitable for hot and cold water distribution.
Compound : TYPE - 3
Operating Pressure : 25°C/20 bar, 70°C/8 bar.
Pipe Lenght : 4 meter

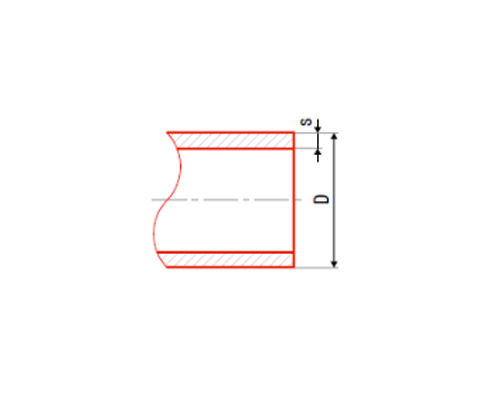

| Item Code | Description | Size | Thickness | Meters/Packet |
|---|---|---|---|---|
| VPPR20FG20 | VIALLI PPR PIPE W/ FIBER G. 20 X 2.8MM SDR7.4 - PN20 | 20 mm | 2.8 mm | 100 |
| VPPR25FG20 | VIALLI PPR PIPE W/ FIBER G. 25 X 3.5MM SDR7.4 - PN20 | 25 mm | 3.5 mm | 100 |
| VPPR32FG20 | VIALLI PPR PIPE W/ FIBER G. 32 X 4.4MM SDR7.4 - PN20 | 32 mm | 4.4 mm | 60 |
| VPPR40FG20 | VIALLI PPR PIPE W/ FIBER G. 40 X 5.5MM SDR7.4 - PN20 | 40 mm | 5.5 mm | 40 |
| VPPR50FG20 | VIALLI PPR PIPE W/ FIBER G. 50 X 6.9MM SDR7.4 - PN20 | 50 mm | 8.4mm | 20 |
| VPPR63FG20 | VIALLI PPR PIPE W/ FIBER G. 63 X 8.6MM SDR7.4 - PN20 | 63 mm | 8.6 mm | 16 |
| VPPR75FG20 | VIALLI PPR PIPE W/ FIBER G. 75 X 10.3MM SDR7.4 - PN20 | 75 mm | 10.3 mm | 12 |
| VPPR90FG20 | VIALLI PPR PIPE W/ FIBER G. 90 X 12.3MM SDR7.4 - PN20 | 90 mm | 12.3 mm | 8 |
| VPPR110FG20 | VIALLI PPR PIPE W/ FIBER G. 110 X 15.1MM SDR7.4 - PN20 | 110 mm | 15.1 mm | 4 |
| VPPR160FG20 | VIALLI PPR PIPE W/ FIBER G. 160 X 21.9MM SDR7.4 - PN20 | 160 mm | 21.9 mm | 4 |
| VPPR200FG20 | VIALLI PPR PIPE W/ FIBER G. 200 X 23.2MM SDR9 - PN20 - ELECTROFUSION WELDING | 200 mm | 23.2 mm | 4 |
| VPPR250FG20 | VIALLI PPR PIPE W/ FIBER G. 250 X 27.3MM SDR9 - PN20 - ELECTROFUSION WELDING | 250 mm | 27.3mm | 4 |
